首先我们了解下梯形彩钢瓦,它的形状固定的是梯形,但是宽度高度都有所不同。
Firstly, trapezoidal roof are commen all over the world, but there are many different size of trapezoidal roofs.
根据不同的高度宽度,再去重新设计方案,是非常费时费力的。安装时如何挑选合适的产品对安装者也是一项挑战。为了解决这一难点,晨科设计了一种适用于所有梯形彩钢瓦尺寸的夹具-#384 壁虎夹具。
If we develop many types of clamps to match different size of trapezoidal roofs, will be time-consuming and laborious. How to choose the right product during installation is also a challenge for the installer. To solve this difficulty, Chiko designed an adjustable clamp suitable for all size trapezoidal Sheet -#384 Clamp.

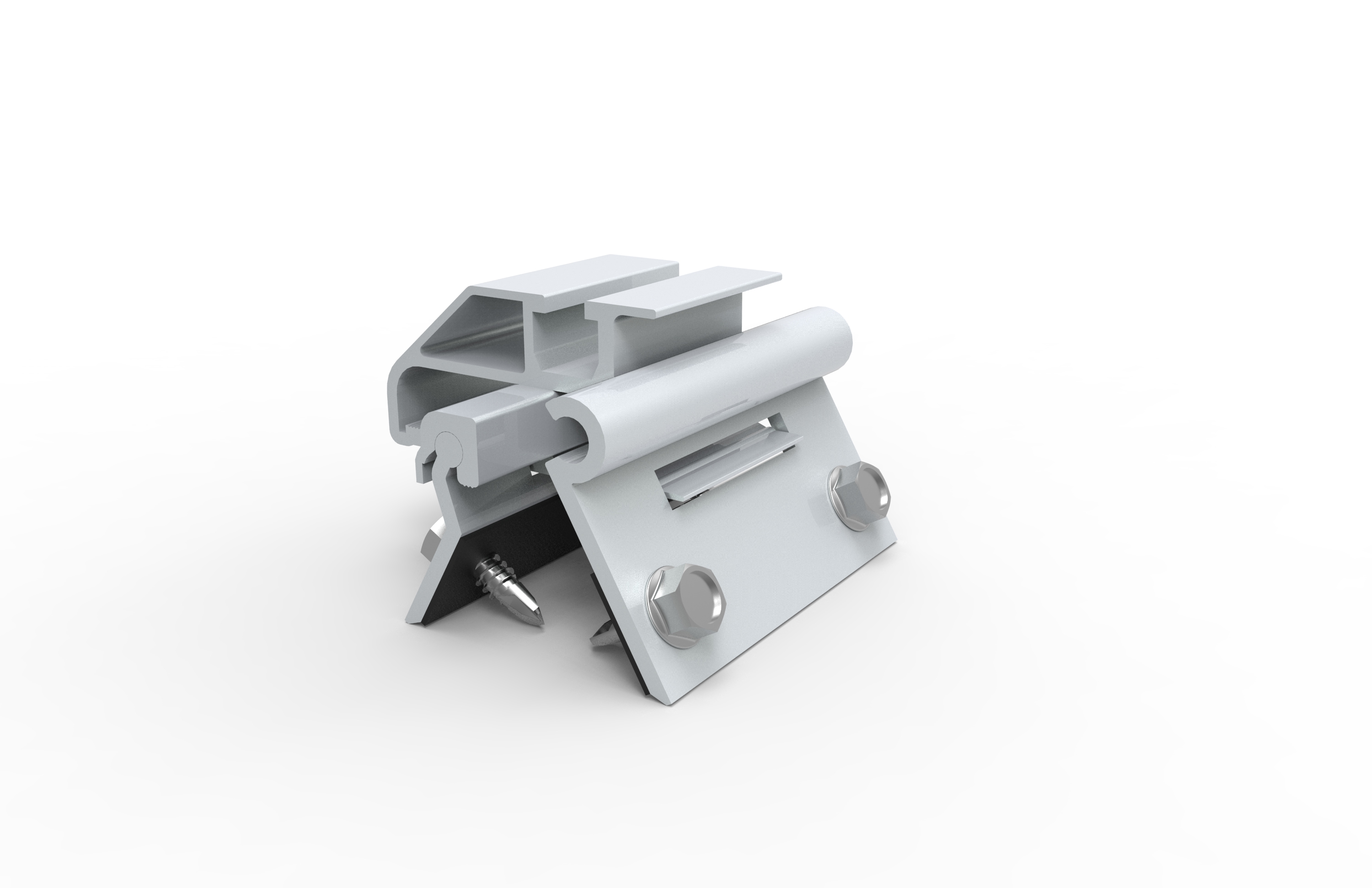

#384 夹具的优点:
The benificial of #384 clamp:
①预组装,安装省时
Pre-assembled, time saving for install
②适用于任何尺寸的梯形铁皮屋顶
Available for any size of trapezoidal roof
③两侧使用EPDM垫片密封,防水效果极佳
Sealed with EPDM at both side, with better waterproof effect
④和屋顶的接触面积较大,可以有更好的屋顶荷载
Greater contact area with roof , which provide better load on roof
⑤AL 6005-T5材质,有极强的防腐蚀性能
Main Material AL 6005-T5, with better Corrosion resistance

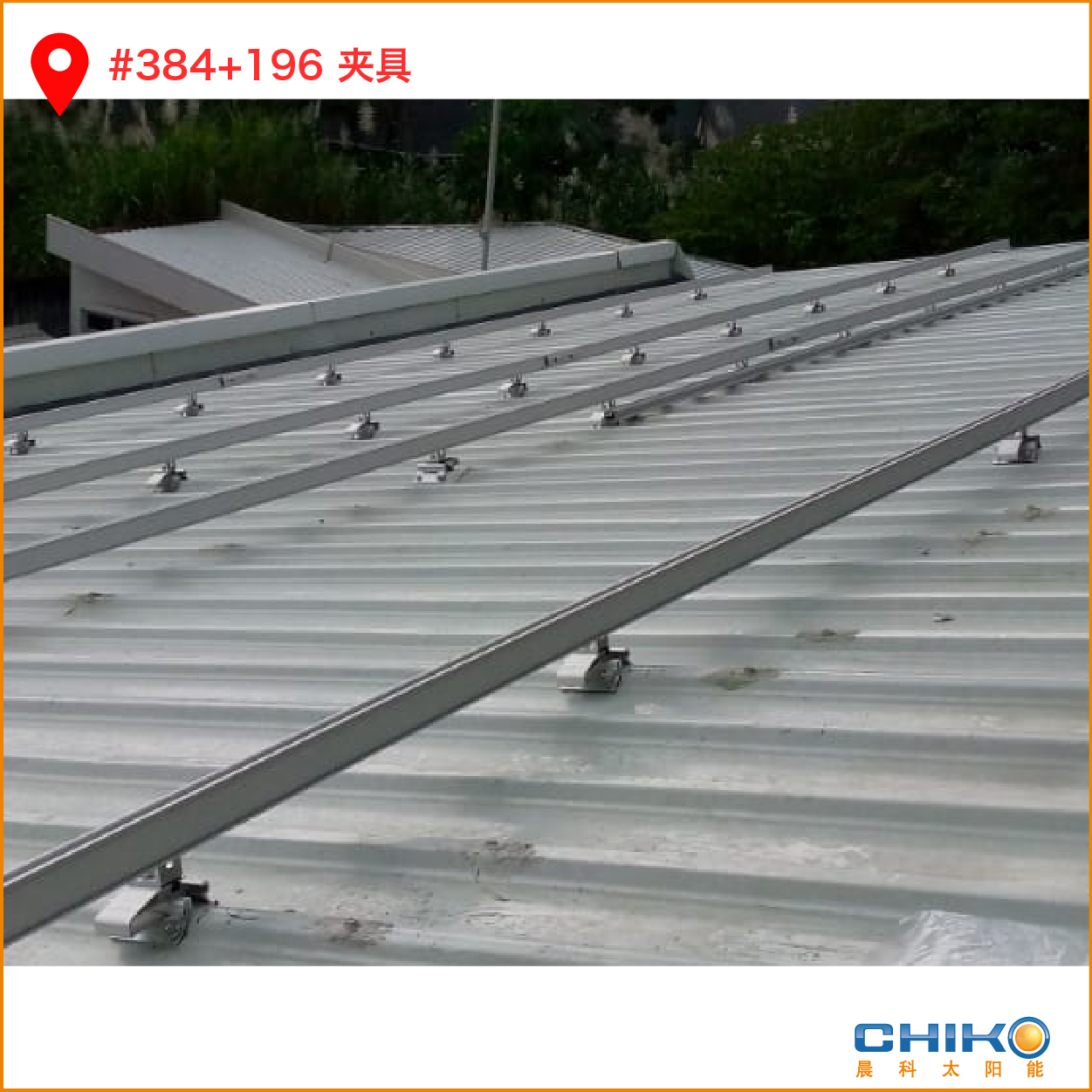

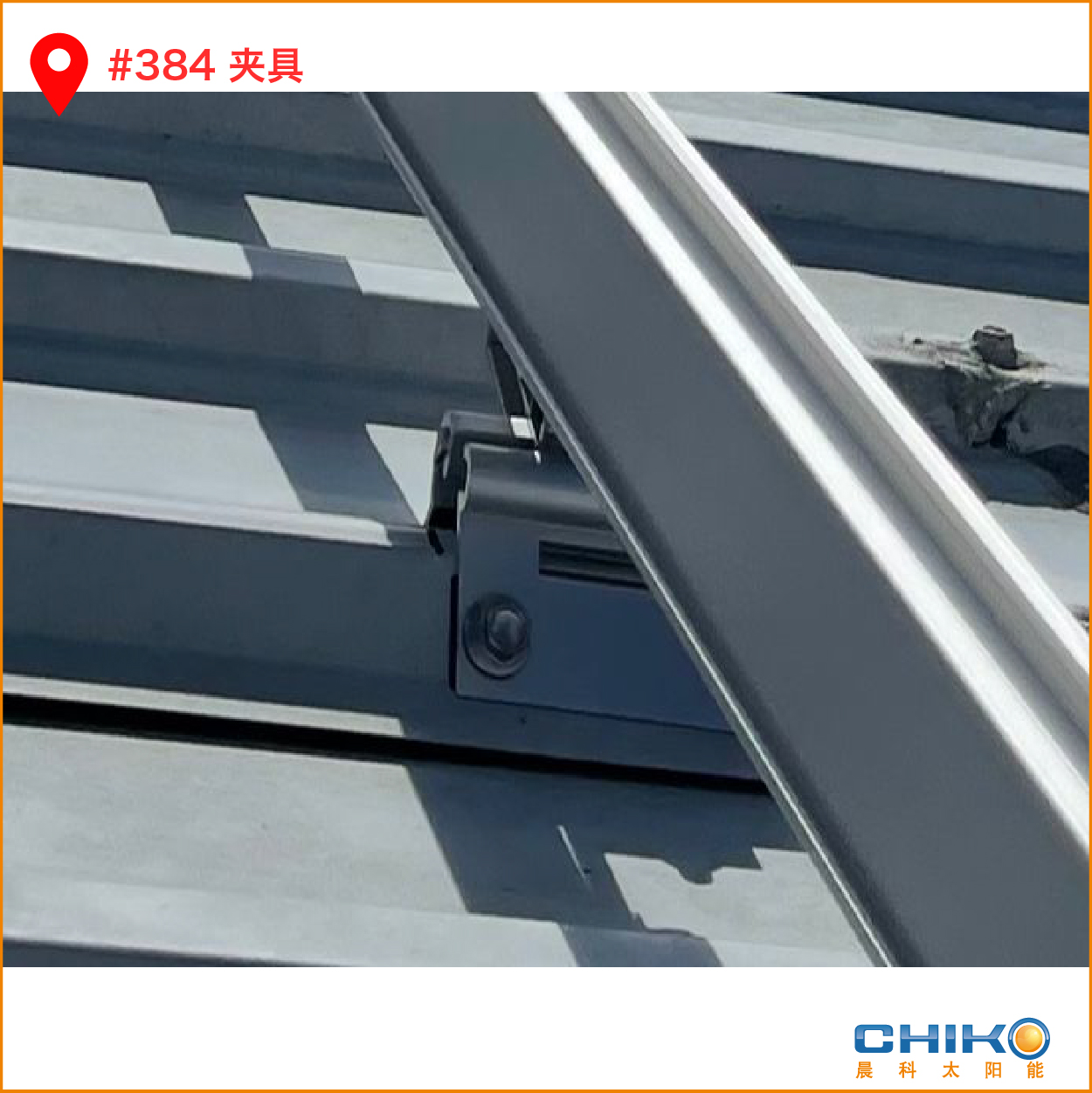

晨科最新的铁皮屋顶支架项目就用了这款夹具。该项目位于巴拿马,是中美洲最南部的国家。该项目的屋顶类型就是梯形彩钢瓦,我们为他推荐了这款#384 壁虎夹具。在生产的时候,我们会提前预组装好这款夹具,使项目安装起来方便快速,只需要调整一下宽度高度。下面让我们看看整体效果:
this clamps is also used in a new project in Panama. The roofing type of this project is trapezoidal metal sheet. During production, we will pre-assemble this clamp in advance, then the installation of the project will be fastly. Let's take a look at the overall effect:
晨科太阳能各种高效灵活的光伏支架解决方案在这里等你! 欢迎咨询!
CHIKO Solar a variety of efficient and flexible PV bracket solutions waiting for you! Welcome to consult!
